Hardwired EV Charging
Hardwired EV Charger Installation in Sugar Land
Maximum continuous output, no plug in the path, installed from Telfair to Riverstone and out along University Boulevard.
Go hardwired – (281) 870-2604
Why Hardwiring Beats a Plug
Hardwired EV charger installation in Sugar Land is the route for drivers who want everything their vehicle will accept and for any unit that lives outdoors. Above 50 amps a plug connection is no longer the right approach, and a charger on a 60-amp circuit delivering 48 amps continuous must be hardwired. Removing the plug also removes the receptacle, which is the component most likely to degrade under daily high-current use. Sugar Land EV Charger Installation performs these as a permitted install with the circuit sized by calculation, the conductors landed directly in the unit, and the whole assembly commissioned before we leave. Owners in the newer master-planned neighborhoods often have the panel headroom for this without any upgrade, which makes it the better value than most people assume.
The Hardwired Install Scope
A hardwired unit is a permanent part of the electrical system, and it is built accordingly.
Load calculation for a 60-amp continuous circuit. We verify your service can sustain 48 amps of continuous draw on top of everything else before recommending the higher tier.
Charger selection matched to your vehicle. There is no benefit in 48 amps if your car's onboard charger caps at 32, and we will tell you where the ceiling actually sits.
Conductor sizing and derating for real conditions. Wire is sized for continuous duty and derated for attic and garage temperatures, which in Fort Bend summers is not a trivial adjustment.

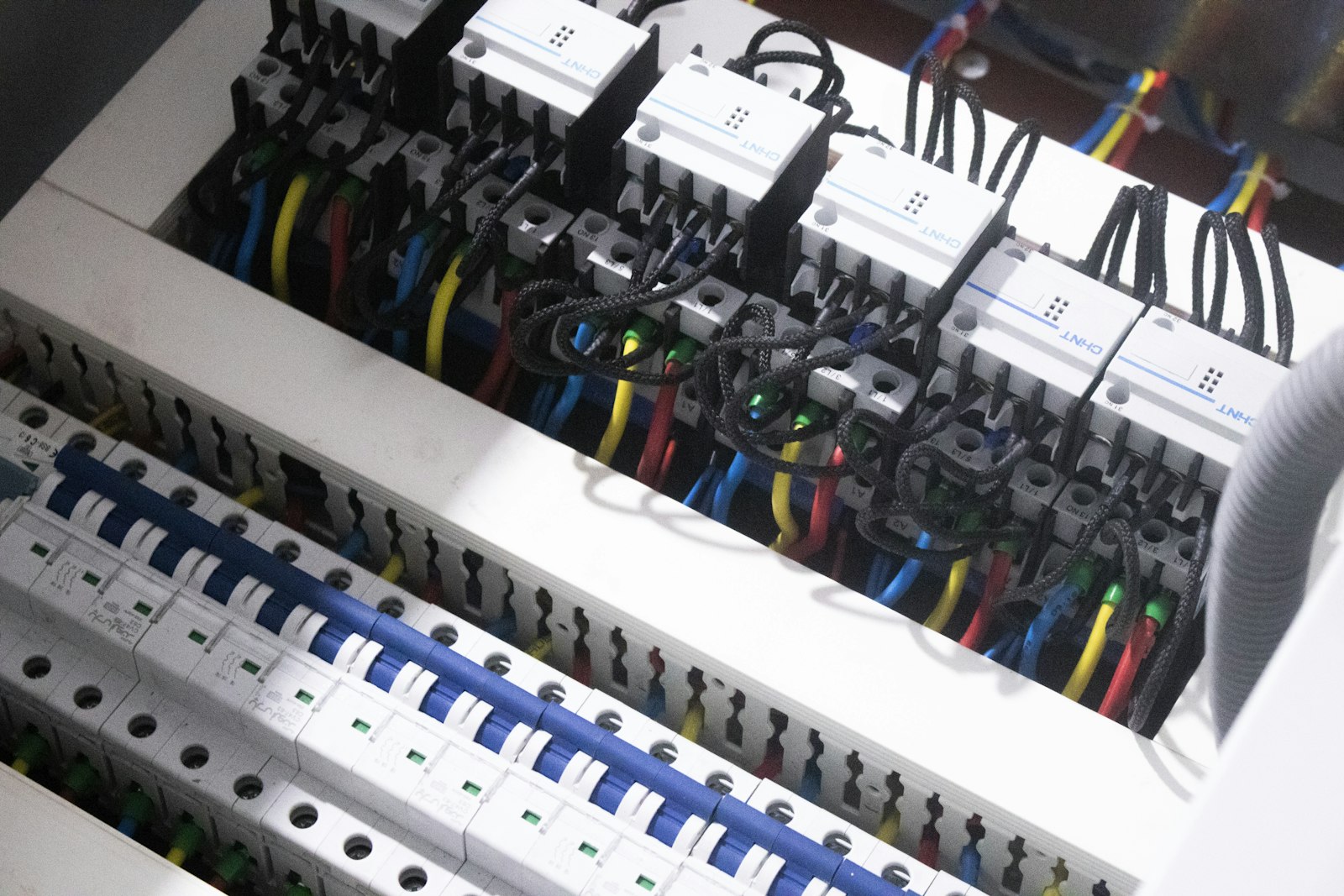

Direct termination inside the unit. Conductors land on the charger's own terminals to the manufacturer's torque spec, with strain relief and the gland sealed.
Dedicated disconnect where required. Some units and locations require a disconnecting means within sight, and we install one as part of the scope rather than as a change order.
Conduit run and support. Exposed sections run in conduit, strapped at code intervals, with transitions and expansion handled where the run leaves conditioned space.
Outdoor and detached-garage installations. Runs to a detached structure, a carport or an exterior wall get weather-rated fittings, proper burial depth where underground, and sealed entries.
Structural mounting at a planned height. The unit anchors into framing, positioned so the cable reaches the port without tension in your normal parking position.
Internal amperage configuration. The unit's software limit is set to match the installed circuit, then verified, so the charger never asks for more than the wire was built for.
Power sharing for two units. Where a second charger is present or planned, we configure load sharing so both can live on one circuit without overdrawing it.
Permit, inspection, commissioning and registration. City permit pulled and attended, a live charge session verified, and the unit registered with its manufacturer.
How it works
Three Stages of a Hardwired Job
STEP 1
Capacity and Ceiling Check
We calculate the service headroom and confirm your vehicle's actual acceptance rate. Those two numbers together decide whether 60 amps is worth the copper or whether a smaller circuit gets you the same real-world result. The assessment is free and takes about an hour.
STEP 2
Written Scope and Permit Filing
You get one price covering the circuit, the disconnect if needed, mounting, commissioning and the permit. We file with the city and schedule the work. Because hardwired runs are often longer, we confirm the routing with you in writing so there are no surprises about where conduit will be visible.
STEP 3
Install, Seal, Commission
The conduit and conductors go in, the unit is mounted and terminated to spec, and outdoor penetrations are sealed. We then set the amperage limit, run a charge session to steady state, and attend the inspection before sending you the sign-off.
Why Hardwired Work Suits Us
We Size to the Car, Not the Brochure
Many 60-amp installs are sold to vehicles that cannot use the capacity. We check your onboard charger's rating first and quote the circuit that matches reality.
Outdoor Runs Are Built for the Gulf Coast
Humidity, heat cycling and wind-driven rain punish a poorly sealed exterior installation. Our weather-rated methods and sealed penetrations are why the ones we install still look right several summers later.
Routing Is Agreed Before We Cut
A hardwired run often crosses an attic or an exterior wall. We walk the path with you and get it in writing, so nobody is surprised by a length of conduit in a visible place.
- TDLR-Licensed & Insured
- Flat-Rate Written Pricing
- Most Installs Finished in One Visit
- EVITP-Certified Installers
Get the Full Output Your Car Can Take
If your panel has the room and your vehicle has the acceptance rate, hardwiring is the install that stops you thinking about charging entirely. We will confirm both before you spend anything. The assessment costs nothing and settles the question.
